Standaard ingegoten 1 fase EI transformator met geintegreerde schroefklemmen en TS35 DIN rail ontwerp

Vanaf: 20,70

Wissen
Artikelnummer: Niet beschikbaar Categorie:

Beschrijving

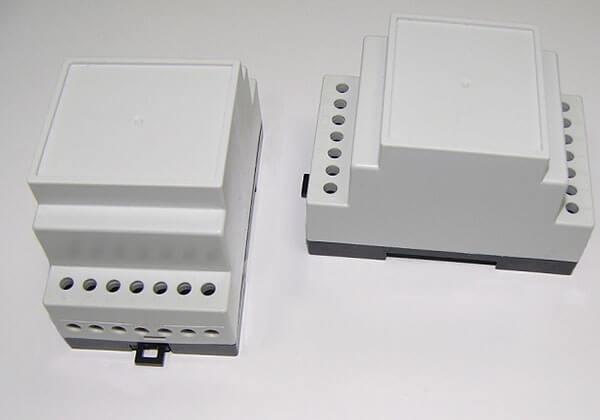

EI transformers in house with DIN TS35 mounting

The standard moulded 1 phase EI transformers with integrated screw terminals and DIN rail TS35 mount designed according to the following specifications.

  • High quality safety and isolating transformers
  • Standard primary winding 230VAC
  • Encapsulated in house for DIN rail mounting
  • Detailed product specification on permanent label
  • High efficiency, low regulation design
  • 100% electrical and flash tested

Specifications:

Power: 8 – 20 VA
Frequency: 50/60 Hz
Primary: 230 VAC
Secondary: 6, 9,12,15,18, 24, 48 VAC
Isolation: 4 kV RMS
Temp. class: B (130°)
Standard: EN61558

keurmerk keurmerk

Power [VA] Prim.[V] Secondary  [V]
8 230V 6, 2×6, 9, 2X9,12, 2×12,15, 2X15,18, 24
12 6, 2×6, 9, 2X9,12, 2×12,15, 2X15,18, 24
16 6, 2×6, 9, 2X9,12, 2×12,15,18, 24, 48
20 6, 2×6, 9, 2X9,12, 2×12,15,18, 24, 48

Extra informatie

Gewicht Niet beschikbaar
Primaire spanning

230 V

Vermogen

8 VA, 12 VA, 16 VA, 20 VA

Secundaire spanning

2 x 6 V, 2 x 9 V, 2 x 12 V, 2 x 15 V, 6 V, 9 V, 12 V, 15 V, 18 V, 24 V, 48 V
